For lifting and transportation of Holland-Profile (HP) and structures with HP-profile. Also useful as a “big-jaw” opening clamp. Standard with 3 pivots for extra powerful clamping force. The Terrier TSHP lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position.

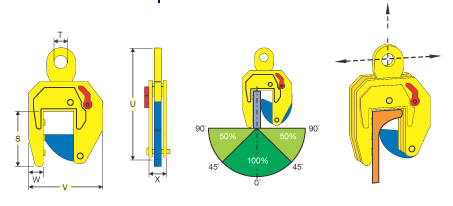

type | cap | jaw | dimensions in mm | wt | |||||
kgs | R | S | T | U | E | F | G | kgs | |
1 TSHP | 1000 | 0-80 | 210 | 68 | 431 | 271 | 55 | 64 | 19.5 |
1 TSEMP | 1500 | 0-80 | 210 | 68 | 431 | 271 | 55 | 70 | 20 |
