For vertical lifting and transportation of concrete pipe and wells. The TBC clamps must always be used in pairs or per three clamps. Higher capacities or other jaw opening upon request. The moveable side is fitted with a “special” high pressure plastic surfac

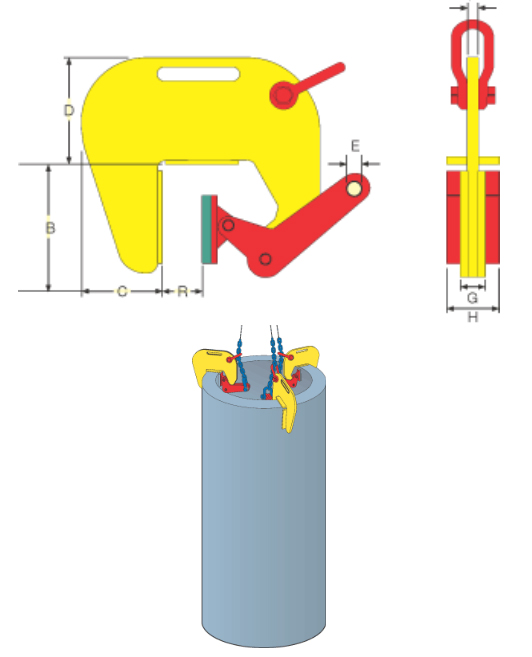

| type | Wll Per Pr | jaw | Dimensions mm | wt | ||||||
| kg | R | B | C | D | E | F | G | H | kgs | |
| 0.5 TBC | 500 | 60-120 | 162 | 110 | 150 | 13 | 10 | 30 | 50 | 7 |
| 1 TBC | 1000 | 60-120 | 162 | 110 | 150 | 13 | 12 | 30 | 50 | 9 |
