r lifting, handling and transportation of packages and single steel plates The Terrier THSK horizontal lifting clamps must always be used in pairs (or multiples thereof). Capacity 1.5 tons per pair upto 9 tons per pair. Opening 0-180,0-300 and 0-420 mm.

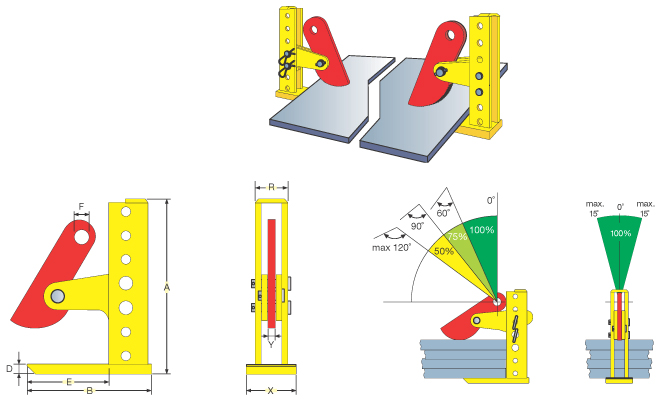

type cap per pr jaw All dimensions in mm wt
  kgs R A B D E F R X Y kgs
1.5 THSK/180 1500 3-180 290 200 15 135 27 60 87 20 9
1.5 THSK/300 1500 3-300 410 200 15 135 27 60 87 20 11.5
3 THSK/180 3000 3-180 300 240 20 165 27 70 105 20 14.5
3 THSK/300 3000 3-300 410 235 20 165 27 70 105 20 13
4.5 THSK/180 4500 3-180 300 240 20 165 27 70 105 20 13
4.5 THSK/420 4500 3-420 530 235 20 170 27 70 105 20 15
6 THSK/180 6000 3-180 305 250 25 160 27 77 120 20 20
6 THSK/420 6000 3-420 540 250 25 165 27 75 120 20 23
9 THSK/180 9000 3-180 305 250 25 160 27 77 120 20 25.5
9 THSK/420 9000 3-420 540 250 25 165 27 75 120 20 29.2
