Safety factor 4:1

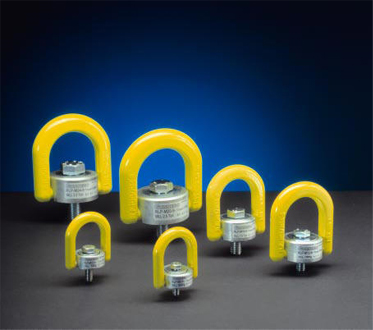

RLP- Rotating Lifting Point, Grade 10
The patented new design of the RLP makes it suitable also in applications where a conventional Lifting point would not b fully adequate. Intended to be used as a Lifting point, Lashing point or Towing attachment.
Dismountable open D-ring. Enables assembly of roundsling, master link, or hook directly onto the RLP.
Hexagon-headed screw for easy assembly/ disassembly by means of an ordinary wrench.
RLP can rotate 360° and articulate 180°.
Forged in Grade 10 material permits higher WLL than Grade 8 and DIN 580 eyebolts.
Straight pull gives a higher WLL Longer bolt can be supplied on special request.
**Available in UNC thread; 5/16”, 3/8”, 7/16”, 5/8”, 3/4”.

Ref 1 Leg 2 Legs 2 legs WLL 3/4 Leg
  straight lift
@0*		 straight lift @90* straight lift
@0*		 straight lift @90* symmetrical lift each leg @0-45* 3/4 Leg symmetrical lift each leg 45-60* 3/4 Leg symmetrical lift each leg 45-60*
RLP M8-10 0.6t 0.3t 1.2t 0.6t 0.3t 0.63t 0.45t
RLP M10-10 1.0t 0.5t 1.0t 0.5t 1.05t 0.75t
RLP M12-10 1.5t 0.75t 3.0t 1.5t 0.75t 1.6t 1.13t
RLP M16-10 3.0t 1.5t 6.0t 3.0t 1.5t 3.15t 2.25t
RLP M20-10 5.0t 2.5t 10.0t 5.0t 2.5t 5.25t 3.75t
RLP M24-10 7.0t 3.5t 14.0t 7.0t 3.5t 7.35t 5.25t
RLP M30-10 12.0t 6.0t 24.0t 12.0t 6.0t 12.6t 9.0t
RLP M36-10 14.0t 8.0t 28.0t 16.0t 8.0t 16.8t 12.0t
RLP M42-10 14.0t 19.6t 32.0t 28.0t 19.6t 29.4t 21.0t
RLP M48-10 20.0t 16.0t 40.0t 32.0t 16.0t 33.6t 24.0t
* Provided only axial loading takes place, i.e. no bending force applied in the direction of the thread
