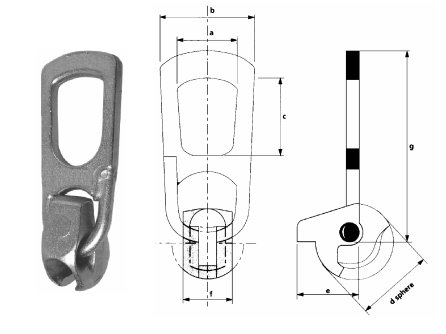

The spherical head lifting shackle is used with the spherical head lifting pins. Even under load, movement is possible and if correctly fitted uncoupling is impossible.
Only to be used in round recess former.
| SWL | A | B | C | D | E | F | G | |
| Tons | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 1.3 | 40 | 62 | 71 | 56 | 45 | 12 | 165 | |
| 2.5 | 50 | 78 | 85 | 68 | 55 | 14 | 205 | |
| 5.0 | 70 | 110 | 88 | 88 | 66 | 20 | 237 | |
| 10.0 | 90 | 140 | 121 | 112 | 118 | 25 | 348 | |
| 20.0 | 140 | 212 | 150 | 152 | 155 | 36 | 440 | |
| 32.0 | 160 | 250 | 189 | 195 | 214 | 45 | 584 |
