Double Eye Type ( D )

Double Eye Type ( D )

Double Eye Type ( D )

Double Eye Type ( D )

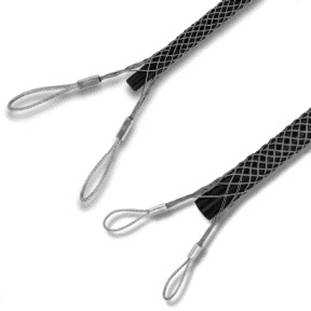

Standard support grip available in single or double strand lattice weave, (lengths and loads as for ‘S’ Type) but with double eye end pulls. Lengths and break loads for this cable grip (as for ‘S’ Type).
Full specifications are given in the table below.

Size Cable dia Type Lattice
weave		 Lattice
length		 Overall
length		 Actual break
tons
mm
ins 		10-13
3/8-1/2″ 		D1 Single 230
9″ 		305
12″ 		0.75T
mm
ins 		13-19
1/2-3/4″ 		D2 Single 355
14″ 		430
17″ 		1.00T
mm
ins 		19-25
3/4-1″ 		D3 Single 405
16″ 		510
20″ 		2.5T
mm
ins 		25-38
1-11/2″ 		D4 Single 455
18″ 		610
24″ 		3.5T
mm
ins 		38-50
11/2-2″ 		D5 Double 535
21″ 		735
29″ 		5.0T
mm
ins 		50-63
2-21/2″ 		D6 Double 610
24″ 		865
34″ 		5.0T
mm
ins 		63-89
21/2-31/2″ 		D7 Double 685
27″ 		990
39″ 		6.0T
mm
ins 		89-115
31/2-41/2″ 		D8 Double 685
27″ 		990
39″ 		7.0T
