Open Ended Type ( O )

Open Ended Type ( O )

Open Ended Type ( O )

Open Ended Type ( O )

Open ended lattice grips, with no eye pulls, to connect two cable lengths for pulling or supporting purposes (lattice lengths somewhat longer than other cable sock types to provide necessary grip on cables but break loads as for ‘S’ Type cables above).

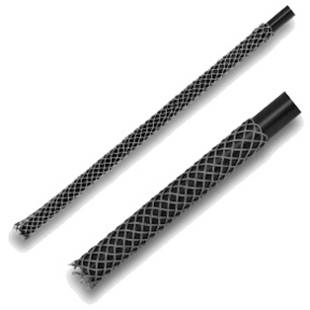

Open ended cable grips photograph
Full specifications are given in the table below.

Size Cable dia Type Lattice weave Lattice ength Actual break tons
mm
ins 		10-13
3/8-1/2″		 O1 Single 380
15″		 0.75T
mm
ins 		13-19
1/2-3/4″		 O2 Single 610
24″		 1.00T
mm
ins 		19-25
3/4-1″		 O3 Single 710
28″		 2.5T
mm
ins 		25-38
1-11/2″		 O4 Single 815
32″		 3.5T
mm
ins 		38-50
11/2-2″		 O5 Double 915
36″		 5.0T
mm
ins 		50-63
2-21/2″		 O6 Double 1065
42″		 5.0T
mm
ins 		63-89
21/2-31/2″		 O7 Double 1220
48″		 6.0T
mm
ins 		89-115
31/2-41/2″		 O8 Double 1370
54″		 7.0T
